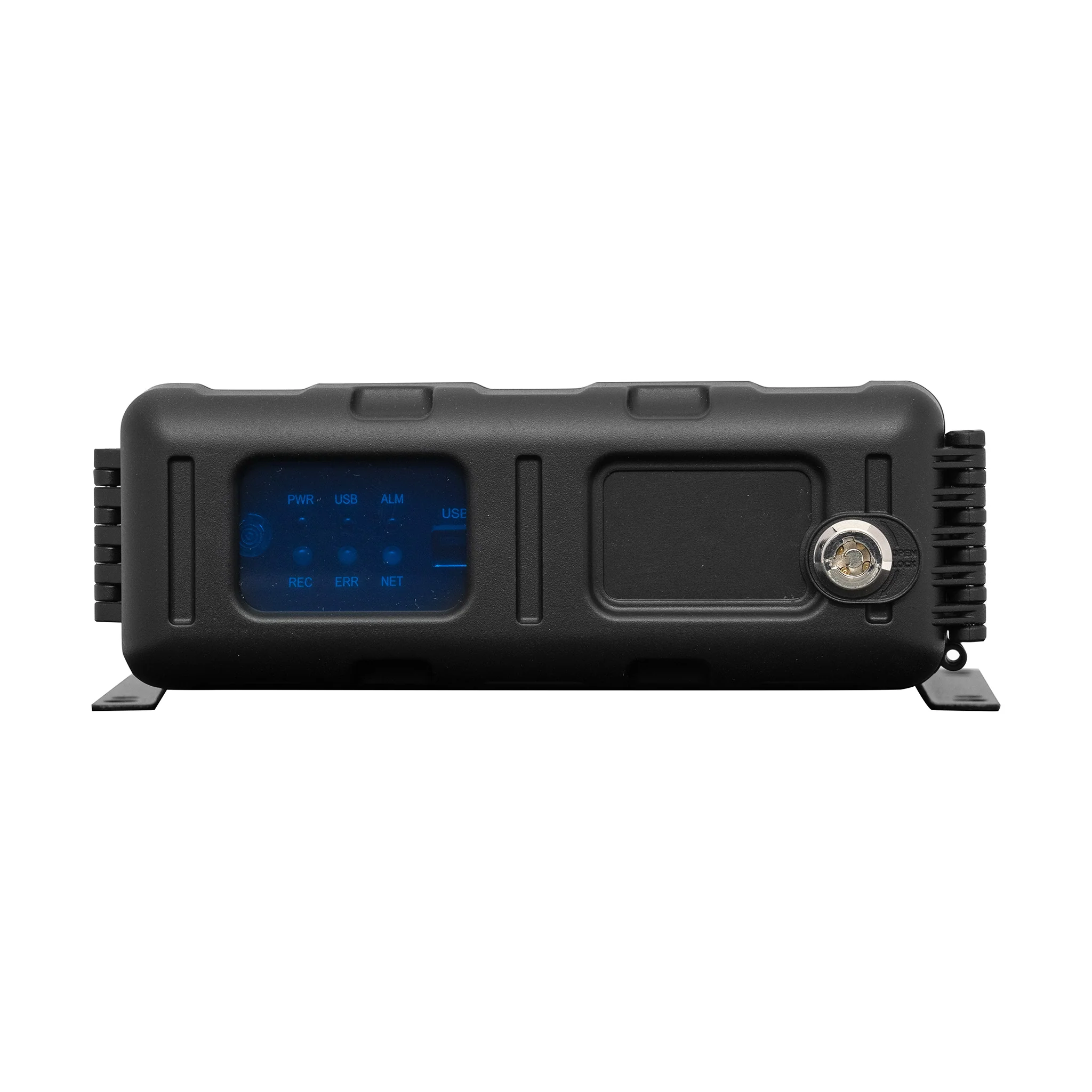

4CH Mobile Network SD Card Video Recorder RVS-M1

4CH Mobile Network SD Card Video Recorder

The RVS-M1 is a compact, robust and functional SD Card Mobile Network Recorder specifically designed for video surveillance and remote access monitoring. It has the most advanced H.264/H.265 video compression technology, 3G/4G Network compatible, GPS technology and as well as WiFi (optional). AI event detection with optional ADAS and DSM camera.

It supports video recording in 1080P, 720P, WD1, WHD1, WCIF, D1, HD1 and CIF formats, also video travel information recording and wireless data upload. With center software management it achieves alarm linkage monitoring, remote access and playback analysis.

It has anti-electromagnetic and radiation interface, lockable SD card storage design which makes this recorder very reliable.

Call 07 3123 6900

Description

PRODUCT SPECIFICATIONS
Video Input	4 channel AHD (1080P) + 1 channel 1080P IPC
Video Output	1 channel
TV System	NTSC / PAL
Video Total Resource	PAL: 4720P@25fps(AHD)+11080P@30fps(IPC)or41080P@10fps(AHD)+11080P@30fps(IPC) NTSC : 4720P@30fps(AHD)+11080P@30fps(IPC) or 41080P@15fps(AHD)+11080P@30fps(IPC)
Audio Input	5 channels (1 channel IPC)
Audio Output	1 channel
Video Compression	H.264/H.265 (encrypted recording)
Audio Compression	ADPCM
Network Connection	3G/4G, WiFi (Optional)
GPS	Yes – Location Tracking, Speed Detection and Time Sync
G-Sensor	Built-in three-axis inertia sensor
Lockable Storage	Yes
Inputs / Outputs	8 Inputs, 2 Outputs, 1 x RS232, 1 x USB2.0 (Type A), 1 x Pulse Speed Detection
SIM Slot	Yes, x1
Storage Type	SD Card x 2 (256GB max)
Operating Voltage	8-36VDC
Max Power Consumption	29W (2.5A @ 12VDC)
Standby Current Consumption	0A
Dimensions (L x W x H) mm	167 x 146 x 54
Weight	0.83kg
Operating Temperature	-40°C to +70°C
