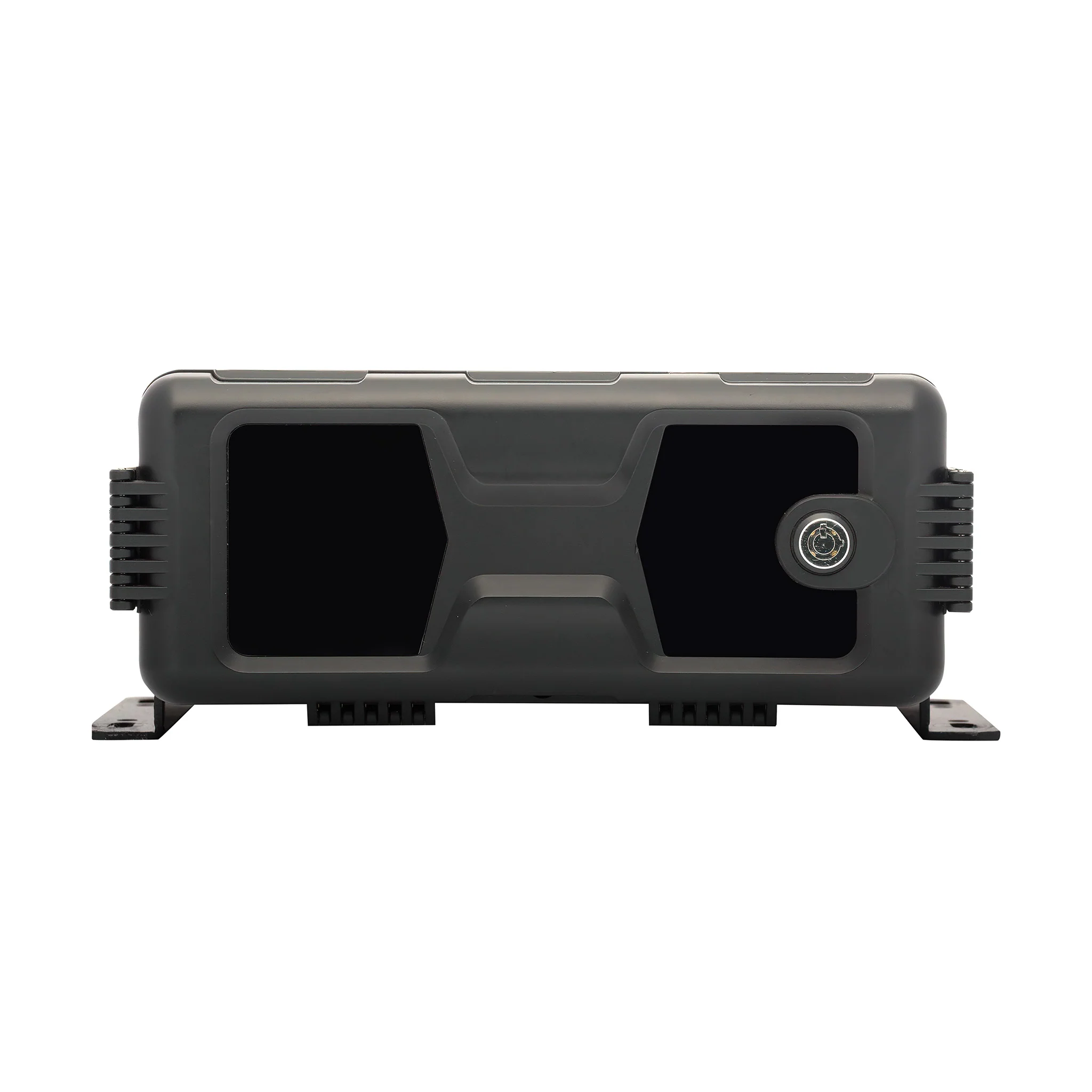

8CH Mobile Network HDD Video Recorder RVS-X5N-E0804

8CH Mobile Network HDD Video Recorder (RVS X5N-E0804)

RVS X5N-E0804 is a cost-effective device specially developed for mobile video surveillance and remote video monitoring, featuring high functional scalability. It is equipped with a high-speed processor and an embedded operating system, integrating state-of-the-art H.265 video compression/decompression technologies, 3G/4G/Wi-Fi wireless network transmission (ADAS) alarm, Blind Spot Detection (BSD), and Driver
in(ADAS) alarm, Blind Spot Detection (BSD), and Driver the(ADAS) alarm, Blind Spot Detection (BSD), and Driver IT(ADAS) alarm, Blind Spot Detection (BSD), and Driver industry.(ADAS) alarm, Blind Spot Detection (BSD), and Driver It(ADAS) alarm, Blind Spot Detection (BSD), and Driver adopts(ADAS) alarm, Blind Spot Detection (BSD), and Driver the(ADAS) alarm, Blind Spot Detection (BSD), and Driver latest(ADAS) alarm, Blind Spot Detection (BSD), and Driver (ADAS) alarm, Blind Spot Detection (BSD), and Driver Status Monitor (DSM), and effectively assists drivers to improve traffic safety and reduce pedestrian pedestrian-motor vehicle accidents.

⚫Embedded Linux operating system

⚫AHD with AI function extension

⚫H.265/H.264 encoding and decoding to improve the memory space utilization

⚫2.5-inch hard disk storage, hard disk heating & hard disk power-off protection technologies

⚫SD card backup

⚫Connection with storage units such as a fireproof box for disaster recovery backup

⚫Good anti-vibration performance and high reliability, providing comprehensive functions

Call 07 3123 6900

SKU: RVS-X5N-E0804 Category: Mobile DVR Systems

Description

PRODUCT SPECIFICATIONS
Video Input	8 channel AHD (1080P) + 4 channel IPC (1080P)
Video Output	2 channel
TV System	NTSC / PAL / Digital (IPC)
Video Total Resource	PAL: (8×25 fps) 720P(AHD) + (4x30fps) 1080P(IPC) Or (8×12 fps) 1080P(AHD) + (4×30 fps) 1080P(IPC) NTSC: (8×30 fps) 720P(AHD) + (4×30 fps) 1080P(IPC) Or (8×15 fps) 1080P(AHD) + (4×30 fps) 1080P(IPC)
Audio Input	12 channels
Audio Output	2 channel
Video Compression	H.264 (encrypted recording)
Audio Compression	ADPCM
Network Connection	WiFi, 3G/4G Optional, Ethernet (RJ45)
GPS	Yes – Location Tracking, Speed Detection and Time Sync
G-Sensor	Built-in 6-axis inertial sensor
Storage	2.5” SATA Hard Disk/SSD x 1 (up to 2TB)
Lockable Storage	Yes
Inputs / Outputs	8 Inputs, 2 Outputs, 2 x RS232, 2 x RS485, 1 x USB2.0 (Type A), 1 x USB2.0 (type B), 1 x Pulse Speed Detection
SIM Slot	Yes, x2
Storage Type	HDD/SSD max 2TB (SD backup recording, max 256GB)
Operating Voltage	8-36VDC
Max Power Consumption	105.3W (9A @ 12VDC
Standby Current Consumption	0A
Dimensions (L x W x H) mm	295 x 222 x 89
Weight	2.6kg
Operating Temperature	-10°C to +70°C (-40°C to +70°C with heater)
