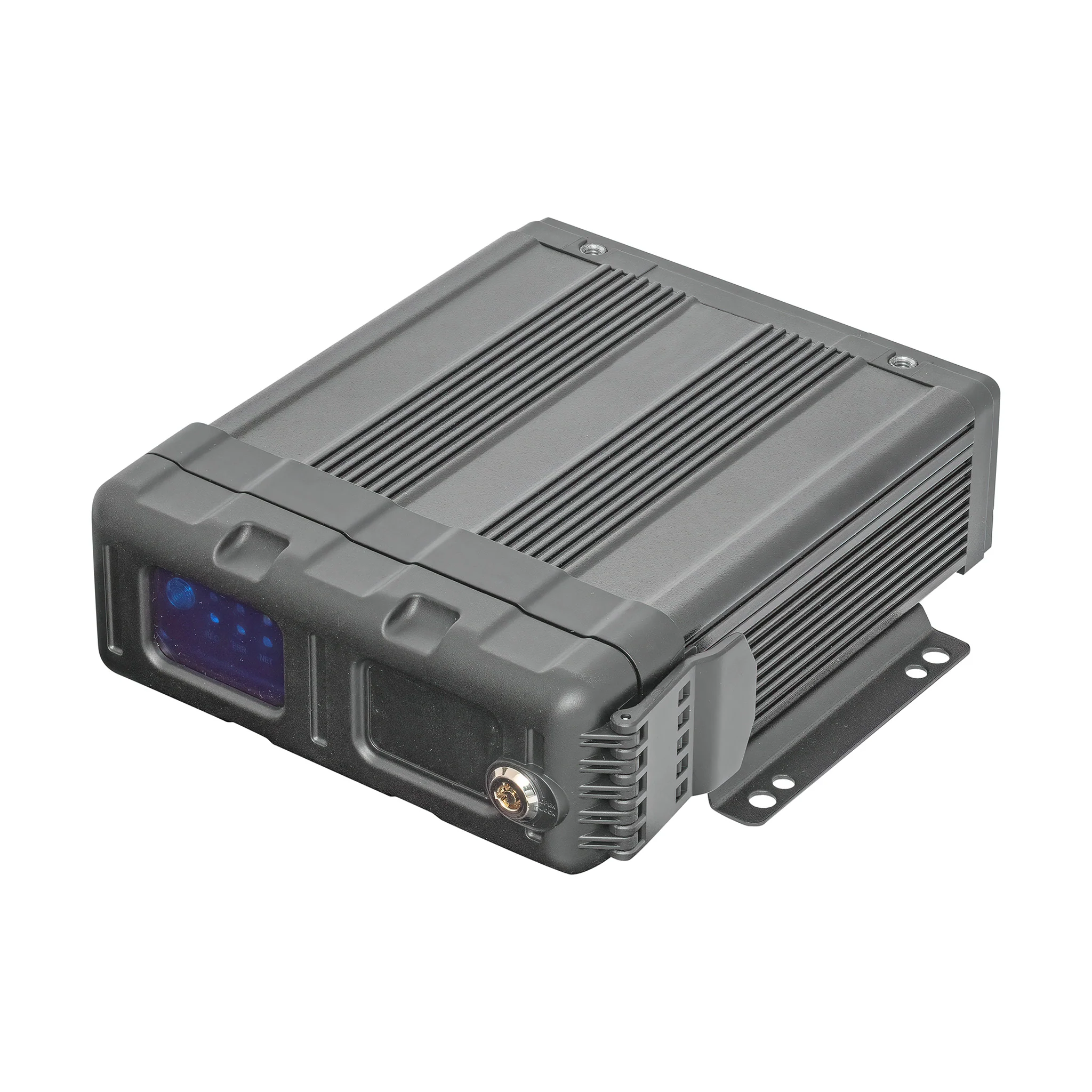

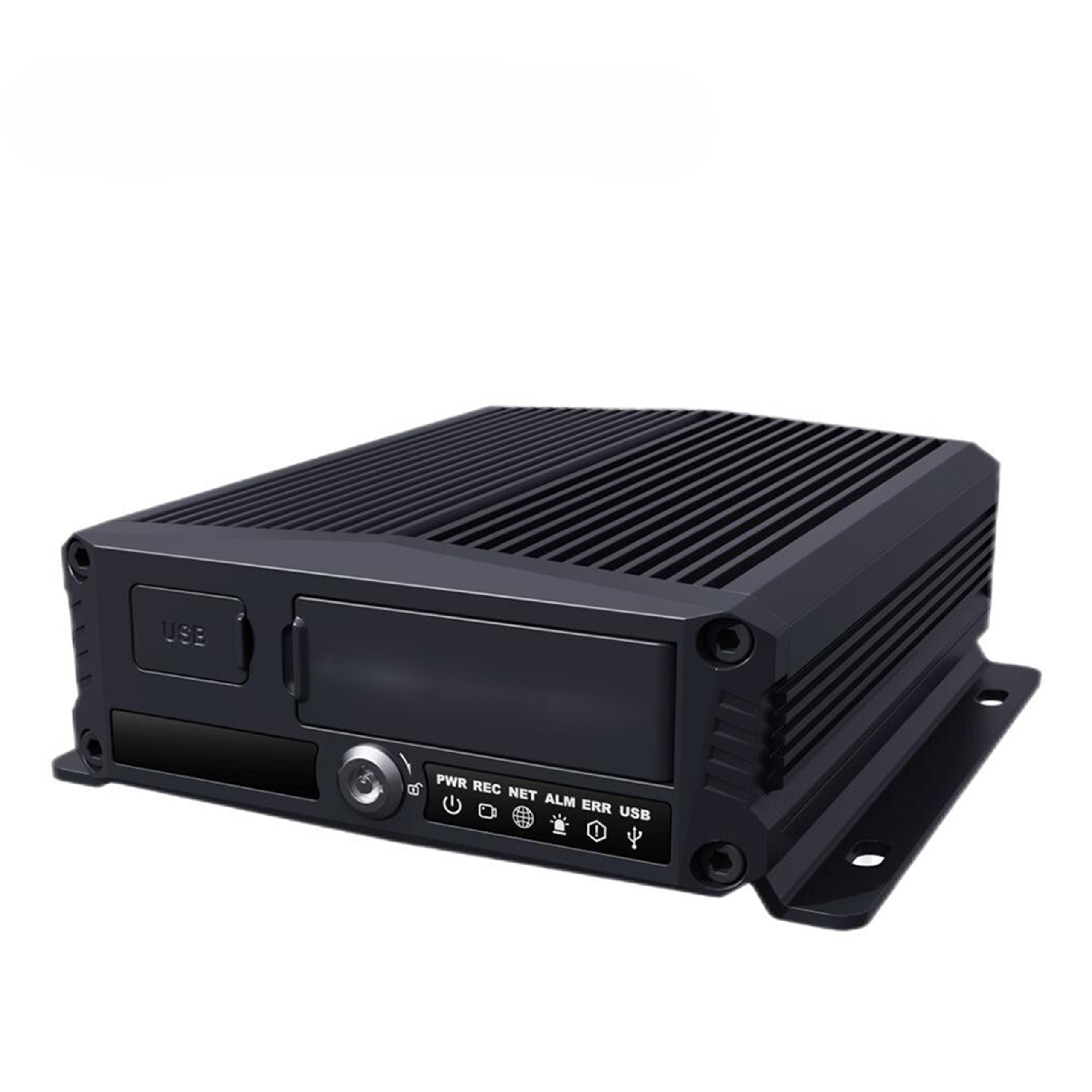

M1N 2.0 DVR All-in-one

The M1N2.0 is a multifunctional in-vehicle terminal combining video monitoring, remote platform access, and driver behavior analysis. It supports 4Ch AHD, 2Ch IPC, and 6Ch 1080P@30fps real-time encoding and recording. With built-in 4G/3G, WIFI, and multi-band GNSS (GPS, BDS, GALILEO, GLONASS), it also features AI-based NPU processing for ADAS, DMS, and BSD, enhancing driver safety. The terminal meets ISO standards and offers strong anti-interference capabilities for various vehicle types.

Main Features

• Supports 4Ch AHD and 2Ch IPC
• Full HD 6Ch 1080P@30fps real-time full-frame encoding in video-only case
• Supports AHD HD video output
• Optional support for digital SIM card technology (eSIM), more resistant to temperature and vibration; extended support for 4G main and hierarchical antennas.
• Supports GPS/BDS/GALILEO/GLONASS for more accurate positioning; external waterproof antenna with IP67 rating.
• External interface automotive-grade, high-precision quick-release connectors support quick disengagement for easy installation and maintenance
• High-speed processor and powerful neural network inference engine with built-in AI
• Supports 2Ch Micro SD , up to 2*512G; additional support for 1*M.2 SSD storage, up to 1*2TB
• The whole system adopts mechanical vibration reduction, electronic vibration prevention and software vibration prevention, a combination of three comprehensive vibration reduction technology
• Rich peripheral interfaces
