RVS-C6_lite-SA-dashca1m

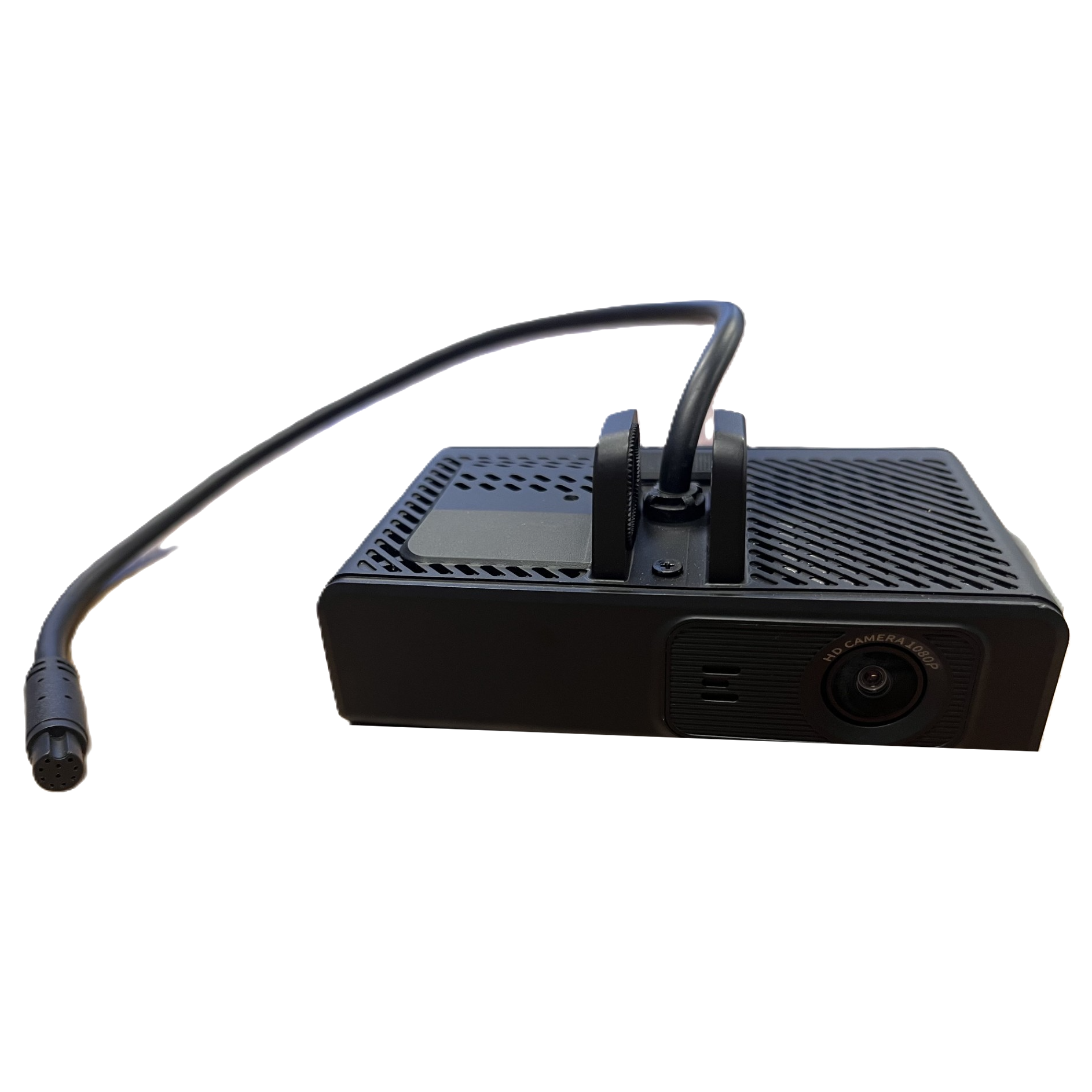

RVS C6 Lite SA – Dash Cam

Single Camera Dashcam

C6 Lite-SA is a dashcam that helps drivers to facilitate fleets to improve management efficiency. It transmits real-time and accurate vehicle position information and operation data to the fleet management platform. It provides high-quality remote intercom and video live view playback to make the fleet management easier and more efficient.

Main Features

• Ultra-wide 143° DFOV road facing lens, supporting up to 1080P UHD video recording
• Support up to 2-channel video recording
• H.264/H.265 encoding
• 2x256GB dual-Micro SD card storage, supporting the simultaneous storage of main
• streams and sub streams
• Built-in Wi-Fi, 4G communication module, and positioning module
• AES256 encryption for video/audio data, encryption protocol TLS1.3 for data transmission
• 4-channel IO input, 1-channel CAN and 1-channel RS232
• Compact design, not affecting the driver’s sight regardless of vehicle size
• OBD power supply, easy installation
• Support echo & noise canceling algorithm to improve the quality of two-way audio communication
• Sleep mode, remote wakeup
• Built-in 6-axis gravity sensor, supporting rapid acceleration, rapid deceleration, harsh
• cornering, and accident detection

Call 07 3123 6900
SKU: RVS-C6-Lite-SA Category: Tags: ,

Description

PRODUCT SPECIFICATIONS
Product Model RVS-C6-Lite-SA
System Embedded Linux
Video/Audio Recording 2-channel video (default: 1 channel; extension: 1 channel) + 1-channel audio
Max. Capability 1080@25fps (Road facing) +1080P@25fps (AHD)
Image Setup Adjustable brightness, chroma, contrast, color saturation, and sharpness
Video Coding Options: H.264 and H.265
Audio Compression Standard Options: ADPCM, G.711, and G.726. Default: ADPCM
CBR/VBR Options: VBR and CBR. Default: VBR
Audio Built-in MIC
Loudspeaker Built-in speaker, power: 3W, with adjustable volume, not less than 70 dB at 1 m distance
Sensor Type 1/2.8” 5-megapixel CMOS sensor
Lens Focal length: 2.6 mm
HFOV: 114°; VFOV: 77°; DFOV: 143°; Deviation: ±5°
Micro SD Card Micro SD card×2, (SDXC 32GB/64GB/128GB/256GB) Read/write rate: Class10 or above is recommended
Six-axis Sensor Harsh acceleration, Harsh deceleration, Harsh cornering, and accident detection
I/O Port 4-channel input
Power supply 12V and 24V vehicles (self-adaptive)
Operating Temperature -40°C ~ +70°C (-40°F ~ +158°F)
Dimensions L x W x H Dashcam: 113.0 mm×67.8 mm×57 mm (excluding bracket); Deviation: ±2 mm Package: 176 mm×150 mm×114 mm; Deviation: ±3 mm
