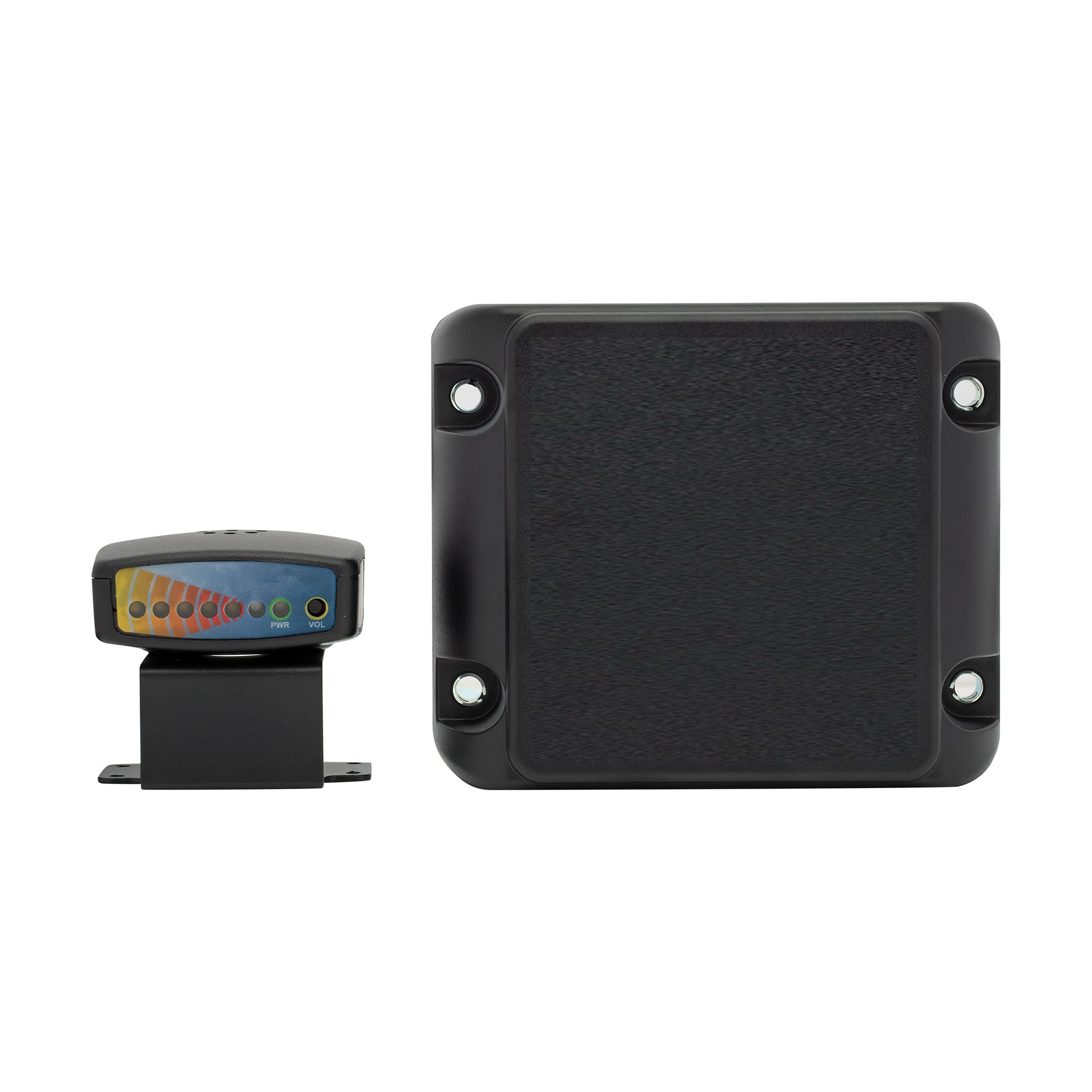

Sentry Radar Detection System

This is the industry’s most flexible, accurate and powerful solution. Sentry has a fully adjustable detection, with the ability to detect objects from the face of the radar up to 30 meters away, even the width of the detection zone can be adjusted to fit almost all vehicles.

The RearSense Sentry has built-in fail safe alerts that notify the operator of radar blockage or communication issues, operators and fleet manager can be sure that they are working with the most reliable object detection system available.

Features and Benefits

  • Customisable detection zones
  • Ability to link to existing CAN-bus systems
  • Detects objects and people up to the face of the sensor
  • Accurately identifies location and velocity of up to 16 objects simultaneously
  • Provides operator audible and visual alerts
  • Engineer to withstand all weather conditions
  • Built to las the life of the vehicle/equipment
Call 07 3123 6900
SKU: REARSENSE-SENTRY Categories: ,

Description

PRODUCT SPECIFICATIONS

Detection Ranges

0m – 30m

Detection Width

2m – 8m

Range Accuracy

0.3m

Target Detection Time

300ms

Transmitter Frequency

24Ghz

Vibration

25G, 3 axis

Shock

50G

Operating Voltage

9-33VDC

Current Draw

250mA

IP Rating

IP69K

Operating Temperature

-40°C to +85°C

Sensor Weight

450g

Sensor Dimensions

125(H) x 103(W) x 32.5(D) mm

Display Dimensions

25(H) x 58(W) x 50(D) mm
