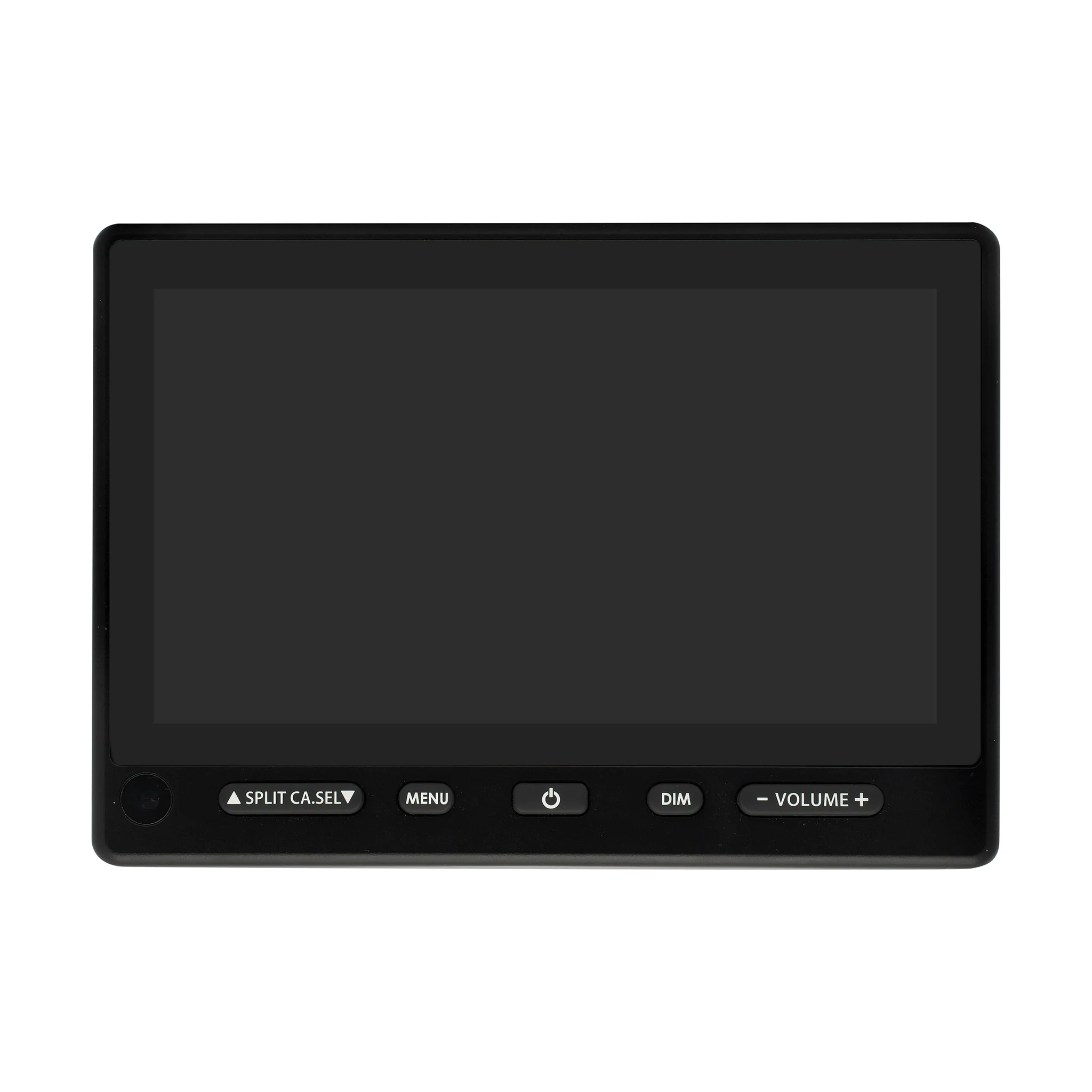

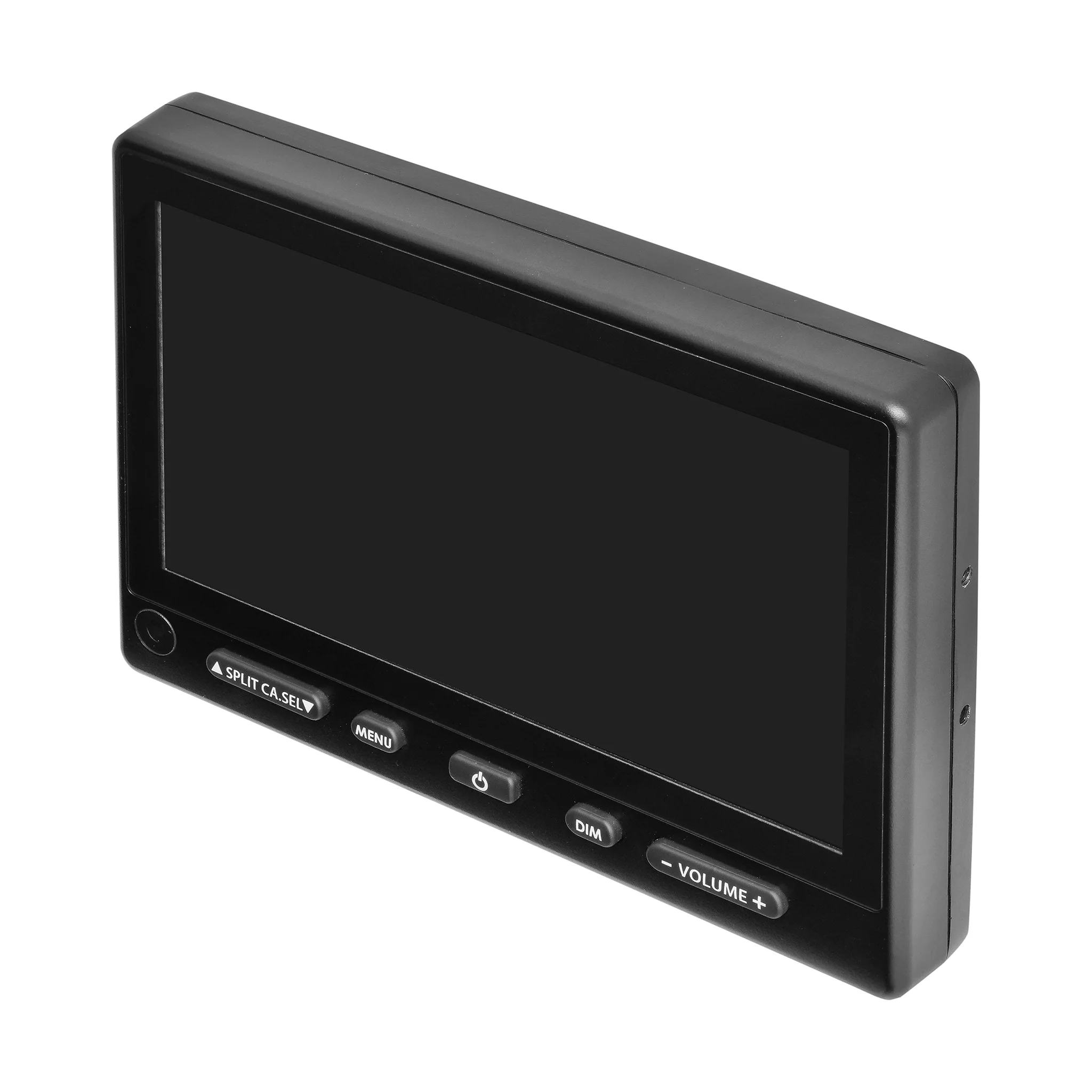

7 inch Waterproof AHD Quad Split Screen Monitor RVS-W744QHDR

7″ Waterproof AHD Quad Split Screen Monitor

The RVS-W744QHDR is a versatile, attractive and slim waterproof monitor.

The monitor has 4 AHD camera inputs that can be dual split, tri-split or quad split. Fitted with built in parking guide lines for ease of navigation when travelling in reverse (activated upon trigger). Lightweight aluminium casing and high IP rating means this monitor can be used in virtually any environment.

This monitor is also compatible with our range of Radar Object Detection Systems (RC-01, RM-02 and RM-04)

Call 07 3123 6900

SKU: RVS-W744QHDR Category: 7" In-Cab displays

Description

PRODUCT SPECIFICATIONS
Display Size	7 inch LED Digital Panel
Resolution	1024(H) x 600(V) x RGB
TV System	NTSC / PAL
Video Input Format	AHD 1080P, 720P, 960H
Split Screen Capable	Yes (Twin, Tri, Quad)
Brightness (cd/m2)	500
No. of Video Inputs	4
No. of Trigger Inputs	3
Speaker	Yes, Built-in
Weight	Approx. 700g
Operating Voltage	10-60VDC
Power Consumption	12 watt max
Parking Guidelines	Yes, Built-in
Mirror Function	Yes, Built-in
Casing Material	Aluminium
Casing Colour	Black
Operating Temperature	-20°C to +70°C
Protection Rating	IP69K
Dimensions (L x W x D) mm	181 x 130 x 29
Package Contents	Monitor, U-Bracket, User Guide, Power/Camera Harness, Sun Visor
