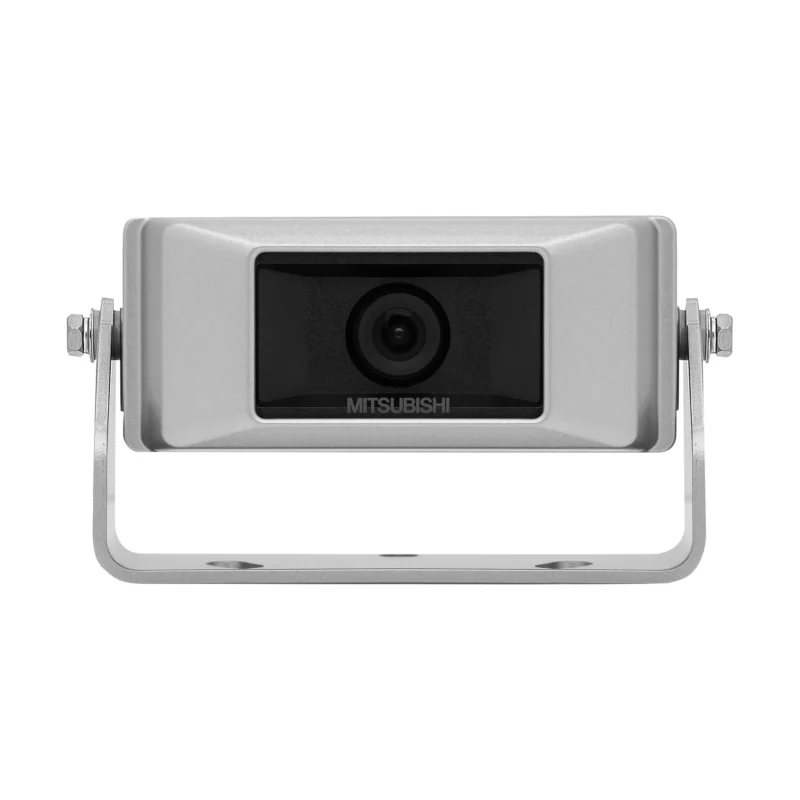

Mitsubishi Heavy Duty Rear View Camera

The C-4010 Colour Camera is a high resolution, super wide-angle camera.  Encased in an aluminium die cast casing, this camera is extremely robust and waterproof.  The camera image can be easily changed from the rear view to forward facing view via a small switch on the rear side of the camera housing.  The C-4010 Colour Camera has outstanding low light capabilities operating down to 0.5 light lux and is extremely reliable even in high vibration environments.  This camera is specifically designed for Heavy Duty applications such as mining and heavy industrial usage.  A narrow and super narrow camera is also available.

Call 07 3123 6900
SKU: C-4010/C-4020 Category:

Description

PRODUCT SPECIFICATIONS

Sensor  1/3” Colour CCD
Effective Pixels  960(H) x 492(V)
TV System  NTSC
Viewing Angle  125° Horizontal (Optional 90°, 54° and 45° Horizontal)
Lens  2.0mm (Optional 3.6mm, 6mm, 8mm)
White Balance  Automatic
Infra-Red LED’s  No
Protection Rating  JIS D 0203 rank S2 (14.7MPa high-pressure water jet)
Vibration and Shock  JIS D1601   110m/s2    5 ~ 100Hz
Operating Temperature  -15°C to +50°C
Operating Voltage  12VDC
Current Consumption  150mA
Dimensions (w x H x D) mm  92 x 40 x 40.7 (camera only)
Package Contents  Camera, Heavy Duty Bracket, Screws, Installation Manual
