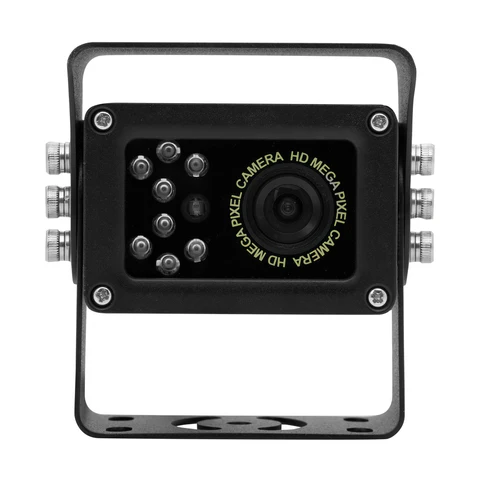

Robust 720P Wide Angle Infrared Camera QRV-STR500AHDIR

Robust 720P Wide Angle Infrared Camera

The Robust Wide Angle Infrared Camera is a robust AHD camera capable of producing clear and colourful images to any AHD capable monitor of DVR system.

The camera has a wide-angle lens, fitted with a microphone and is equipped with 8 Infrared LED’s to ensure clarity in dark situations.

This camera is also available without Infrared LED’s.

The camera is also available in 1080P to produce crystal clear Analogue High Definition imagery.

Call 07 3123 6900

SKU: QRV-STR500AHDIR Category: Truck Camera Systems

Description

PRODUCT SPECIFICATIONS

Sensor	1/3” 1.3M pixel Sony CMOS WDR
Resolution	720P AHD (1080P AHD Optional)
TV System	NTSC
Viewing Angle	145° diagonal
Lens Focal Length	2.0mm 3 MEGA Lens
Minimum Illumination	0 Lux
White Balance	Yes, Automatic
Infra-Red LED’s	Yes, 8 (10m distance) (Optional without IR)
Microphone	Yes
Protection Rating	IP69K
Operating Temperature	-20°C ~ +60°C
Operating Voltage	12VDC
Power Consumption	2W (150mA) max
Dimensions (H x W x D) mm	69 x 60 x 43
Casing Material	Cast Aluminium
Connector	4-pin mini DIN Male Screw Waterproof
Package Contents	Camera, Fixing Bracket, Screw Kit
