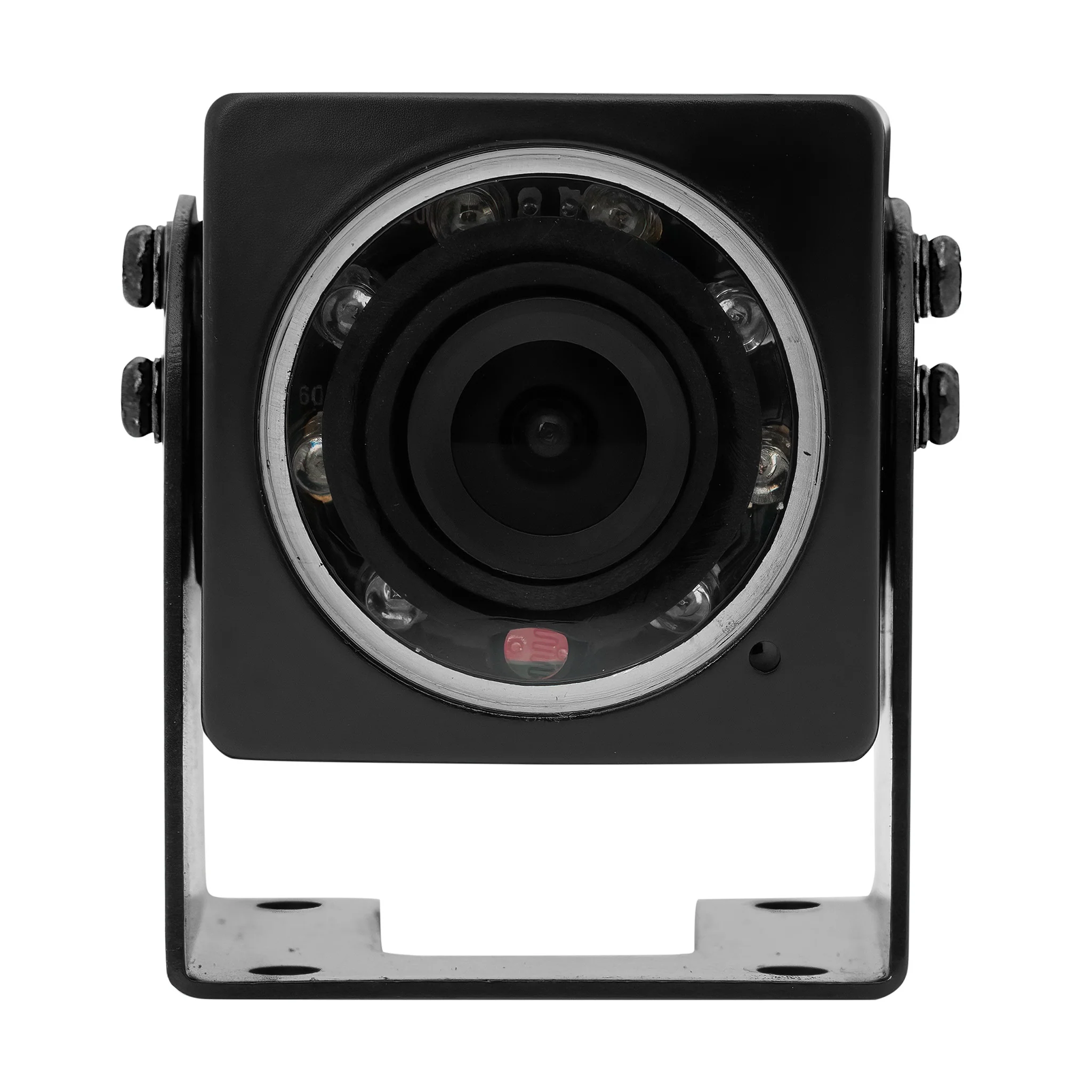

The ProVision PV-CS21B is a light weight well built and compact rear view camera is perfect for installation into areas where space is limited. With 8 Infra-Red LED’s this camera works great in the day and night. Fitted with a Mirror / Normal image switch on the back of housing allows for ease of image change. Suitable for Business vans, small trucks, caravans, motor homes, utilities and four wheel drive.
Also available in Ultra Narrow View.
PRODUCT SPECIFICATIONS
| Sensor | 1/3” CMOS |
| Resolution (Pixels) | 720(H)*480(V) |
| Horizonal Resolution | 580TVL |
| TV System | PAL |
| Viewing Angle | 140 degree diagonal (45degree optional) |
| Output Image | Selectable (mirror or true) |
| Infra-Red LED’s | Yes, 8 piece |
| Microphone | Yes |
| Protection Rating | IP68 |
| Operating Temperature | –30°C to +70°C |
| Operating Voltage | 12VDC |
| Current Consumption | 150mA |
| Dimensions (w x H x D) mm | 34 x 34 x 40 |
| Package Contents | Camera, Camera Bracket, Screws, Installation Manual |
