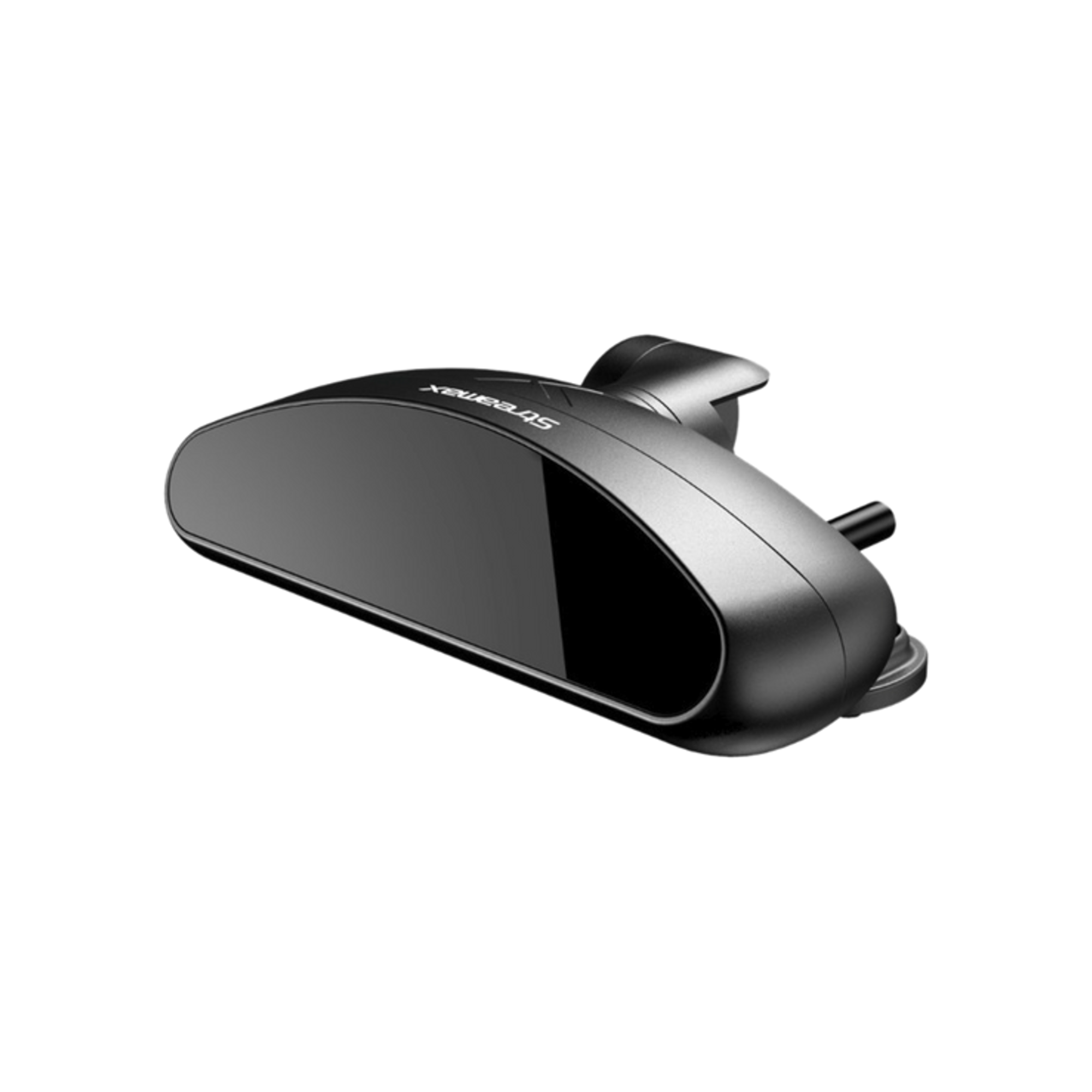

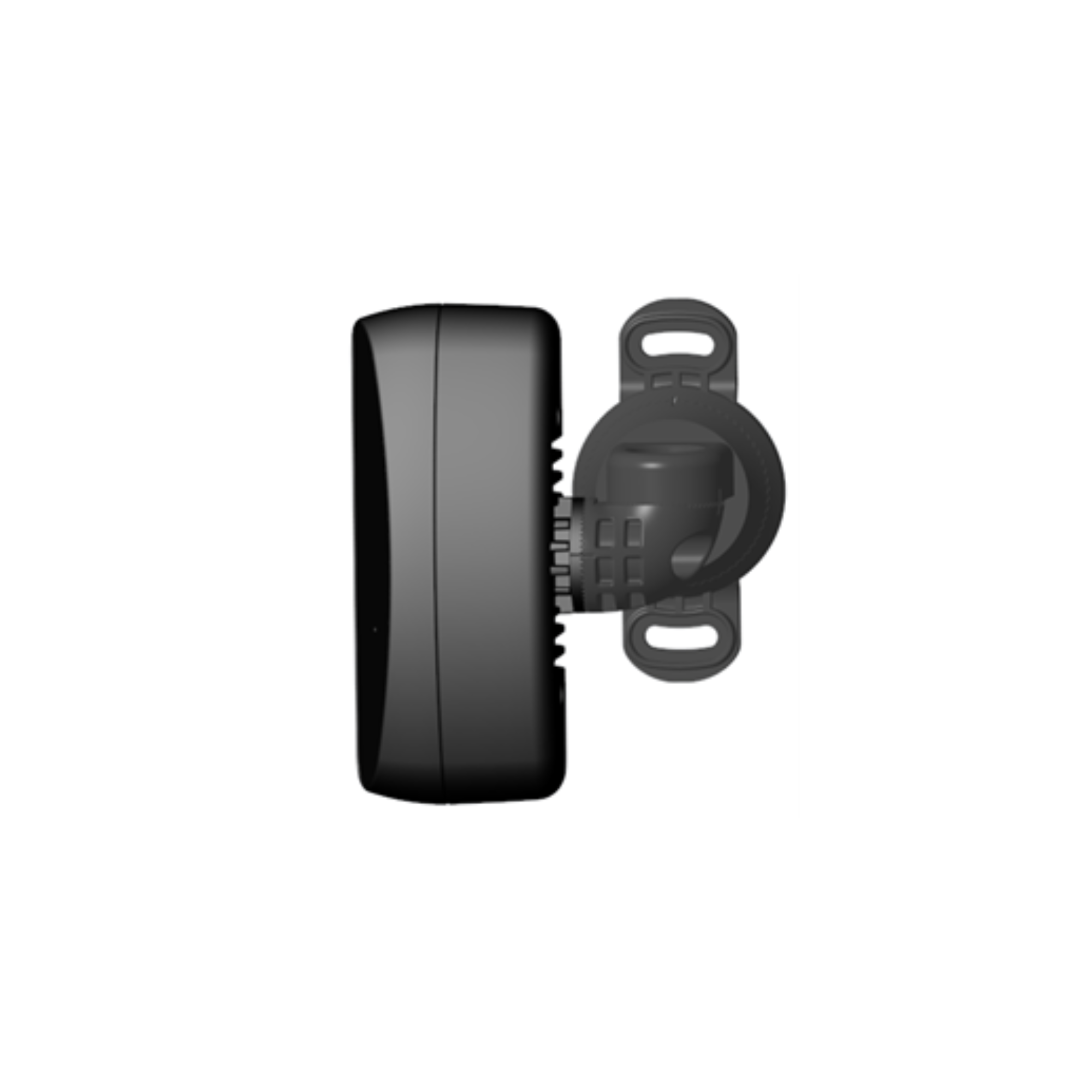

Driver Monitoring System Camera

Main Features

  • 1280*800@20fps Resolution
  • DMS intelligent local algorithm operation
  • Exposure function of face center area
  • Strobe of IR light power adjustment
  • Built-in G-sensor, automatically adjust the horizontal and vertical changes of the image to adapt to the installation
  • Standard 3mm lens，keep the drivers always within the shot
  • Built-in audio device
  • Application scenarios：A-pillar side mounting, windshield mounting, and dash board mounting

AI Features

  • BUILT-IN AI PROCESSOR TO QUICKLY DETECT HAZARDS
  • Deep learning to improve reliability
  • Complex scenarios are greatly optimised TO IMPROVE SAFETY

SUPPORTS MONITORING AND RECORDING

  • Fatigue
  • Yawning
  • Smoking
  • Mobile phone
  • Driver Distraction
  • Seatbelt
  • No driver
  • Audio
Call 07 3123 6900
SKU: C29N Categories: ,

Description

PRODUCT SPECIFICATIONS
Product Code C29N
Sensor 1/4“1Mp Global Shutter Sensor”
Resolution 1280(H)x800(V)
Minimum Illumination 0 Lux（Infrared)
Electronic Shutter 1/30S-1/5000S
Black-light Compensation Support(Default turn off)
Compression Output Rate 512Kbps-3Mbps
Image Resolution
Main Stream:800P @ 20fps
Sub Stream：VGA 20fps（optional: CIF、D1） Default stream: 1Mbps
Net Transmission Stream: Dynamic（Adaptive）
Network Port 10M/100M Adaptive Ethernet Port  (Six core aviation head and car connector head optionally)
Audio Input Support
Audio Capture Range 1.5M
Power Supply PON (DC9-16V)
Operational Temperature -40℃–＋70℃
Waterproof Class IP53
Weight 230 g
Dimension (Unit in mm) 98MM(L)x30MM(W)x43MM(H)
Installation Features Cabin: A-pillar side mounting, windshield mounting, and dash board mounting
