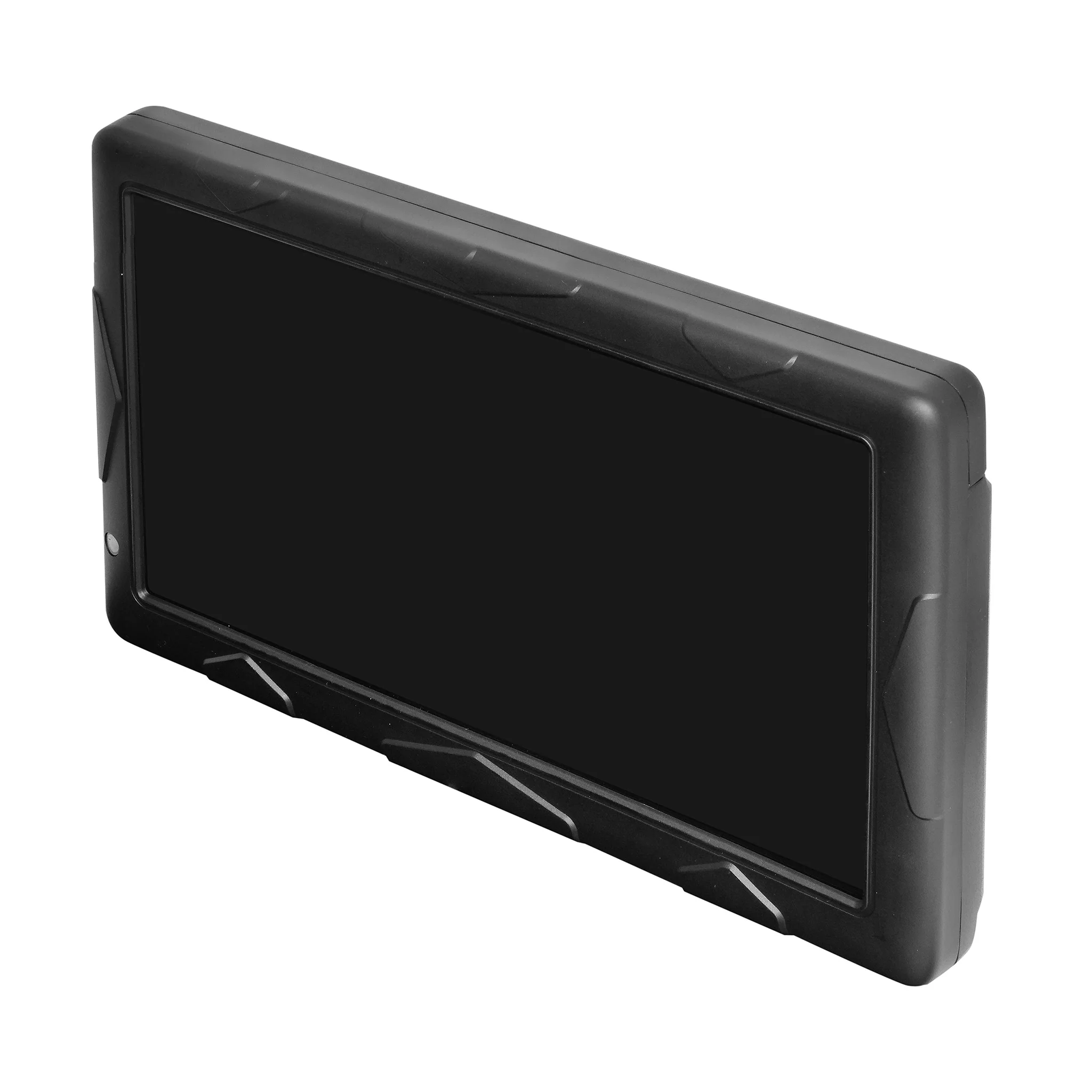

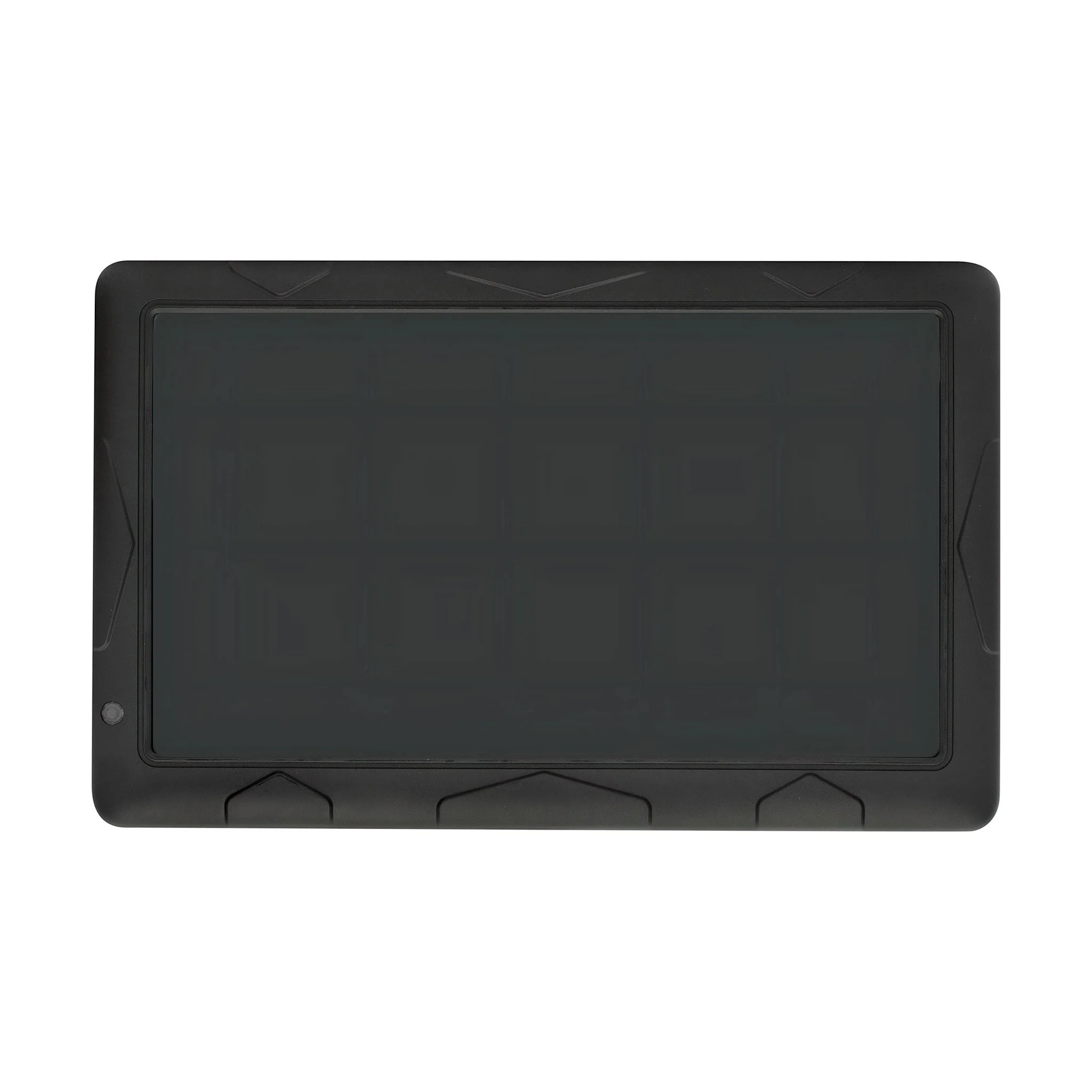

10″ DVR Monitor with Touchscreen Panel RVS CP5

The 10 inch DVR Monitor with Touchscreen Panel is designed specifically to work with our X3 and X5 MNDVR to display up to 9 camera’s on the large 10inch AHD display.*

The monitor is connected directly to the MNDVR and can display single camera, 4-camera’s or 9-camera’s at once, all in highest clarity. Individual camera feed can also be triggered to display via the DVR integrated IO’s.

This monitor will only work with our range of DVR’s.

*The CP5 can also be used as a standalone monitor to display 1 x 720P AHD Camera.

Call 07 3123 6900
SKU: RVS-CP5 Categories: ,

Description

PRODUCT SPECIFICATIONS
Display Size 10.1 inch
Resolution 1024(H) x 600(V)
TV System NTSC / PAL (from DVR)
Video Input Format 1ch VGA, 1ch AHD
Split Screen Capable Yes (1, 4 and 9)
Brightness (cd/m2) 450
No. of Video Inputs Up to 8 (from DVR)
No. of Trigger Inputs Up to 8 (from DVR)
Speaker Yes, Built-in
Weight Approx. 1100g
Operating Voltage 12V (from DVR)
Power Consumption 7 watt
Parking Guidelines No
Mirror Function No
Casing Material Aluminium, ABS
Casing Colour Black
Operating Temperature -30°C to +70°C
Dimensions (L x W x D) mm 258 x 162 x 43
Package Contents Monitor, Mounting Bracket

Related products

  • 7" or 10" Intelligent Vehicle Recording Monitor with AI Algorithms
    Send enquiry

    7″ or 10″ Intelligent Vehicle Recording Monitor with AI Algorithms

  • 9" Slimline Waterproof Quad Monitor
    Send enquiry

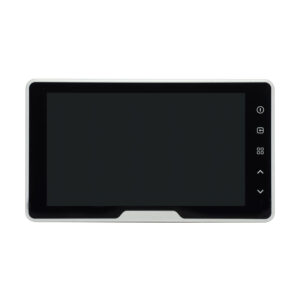

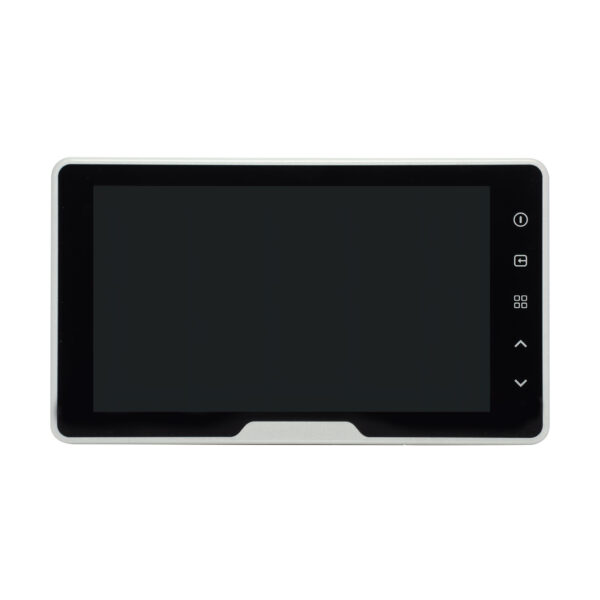

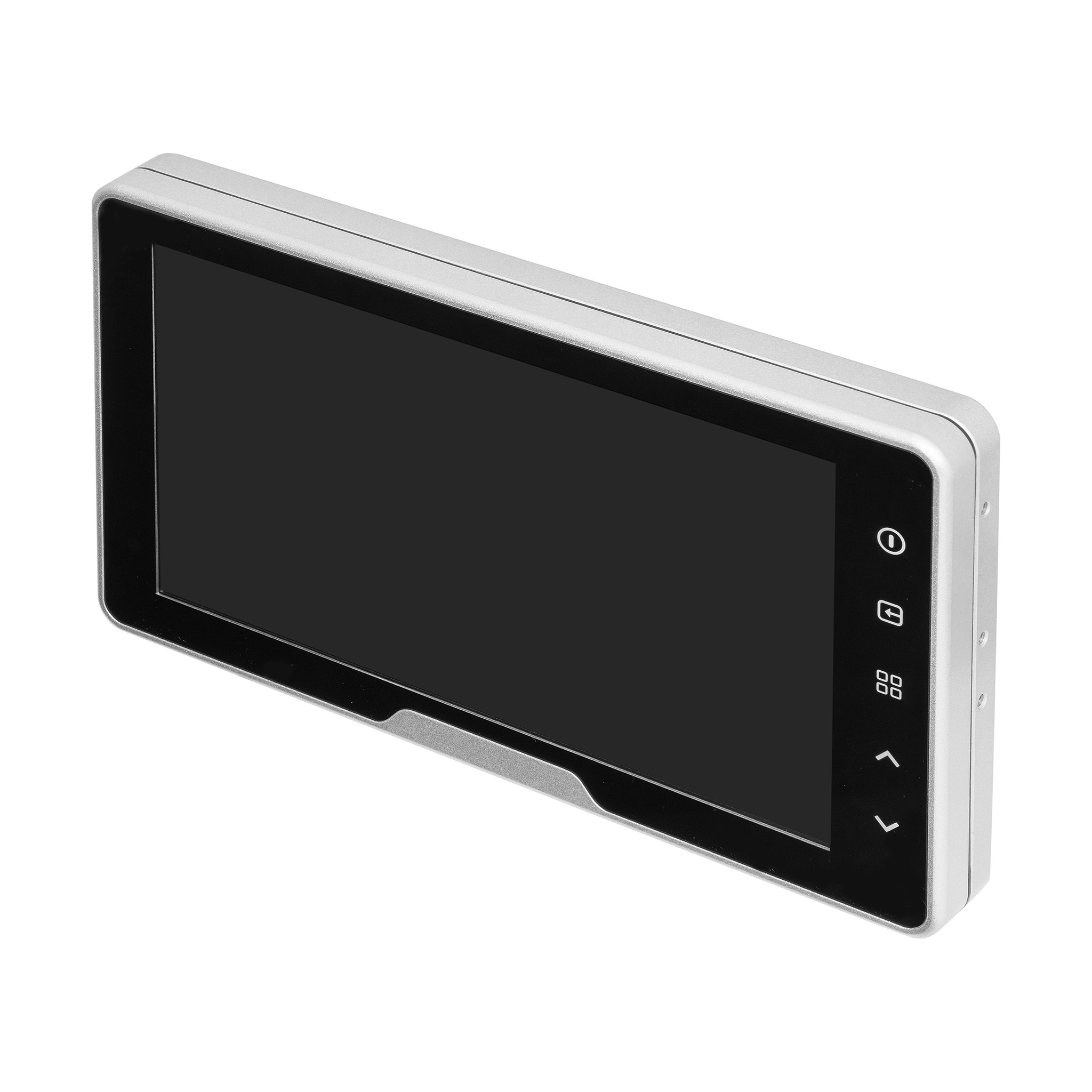

    9″ Slimline Waterproof Quad Monitor
