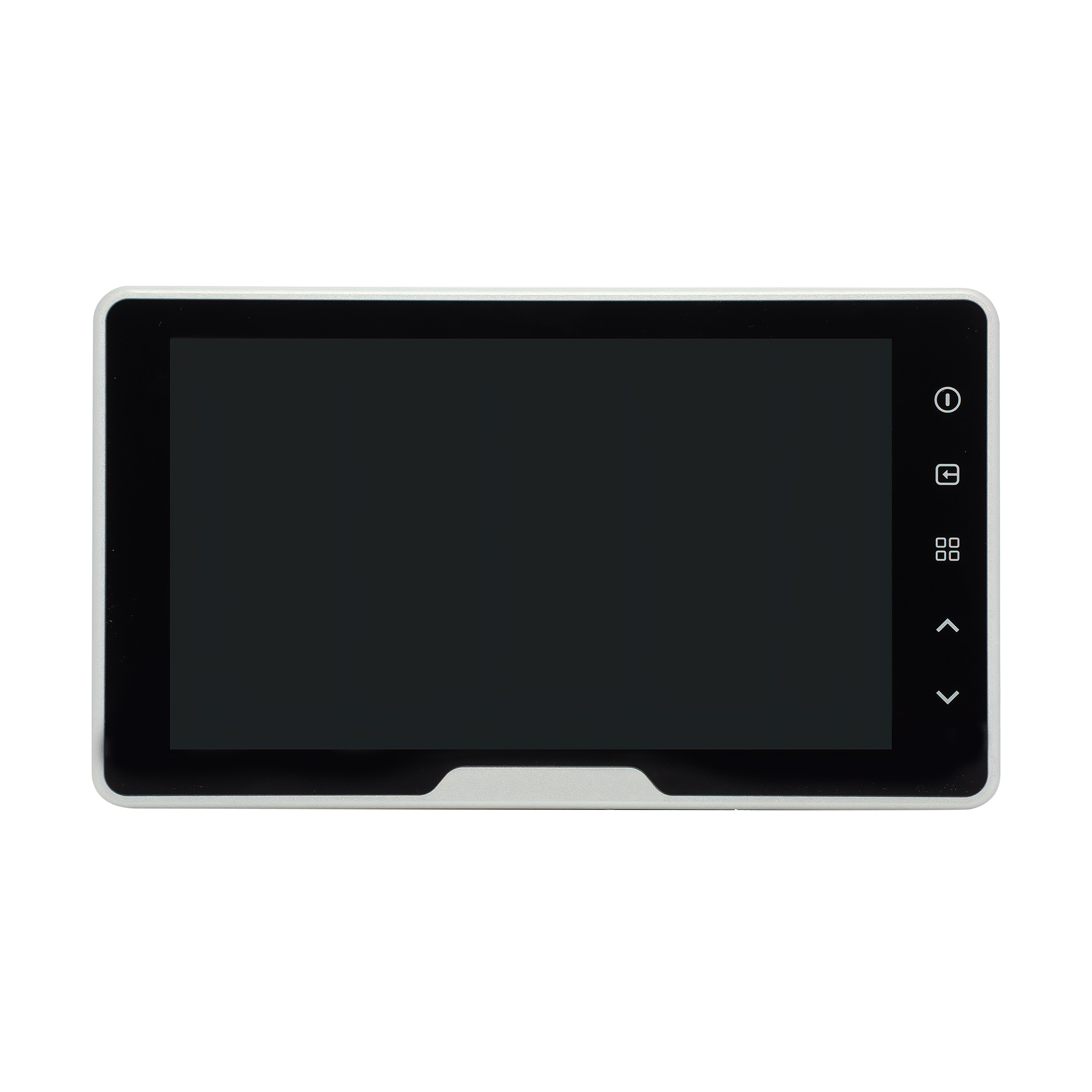

9″ Slimline Waterproof Quad Monitor

The 9″ monitor is a versatile, attractive and slimline weatherproof monitor. The monitor has 4 camera inputs that can be dual split, tri-split or quad split. Fitted with built in parking guide lines for ease of navigation when traveling in reverse (activated upon trigger). High quality aluminum casing and high IP rating means this monitor can be used in virtually any environment.

Call 07 3123 6900
SKU: RVS-M90QWP Category:

Description

PRODUCT SPECIFICATIONS

Display Size  9 inch
Resolution  800(H) x 480(V) x RGB
TV System  NTSC / PAL
Video Input Format  CVBS
Split Screen Capable  Yes (Twin, Tri, Quad)
Brightness (cd/m2)  250
No. of Video Inputs  4
No. of Trigger Inputs  3
Speaker  Yes, Built-in
Weight  Approx. 900g
Operating Voltage  10-32VDC
Power Consumption  16 watt max
Parking Guidelines  Yes, Built-in
Mirror Function  Yes, Built-in
Casing Material  Aluminium
Casing Colour  Silver
Operating Temperature  –30°C to +80°C
Protection Rating  IP69K
Dimensions (L x W x D) mm  240 x 140 x 25
Package Contents  Monitor, U-Bracket, User Guide, Power/Camera Harness
